Free Standing Inlet Connections

Elkhart’s 90° free standing inlet connections are cast brass construction, as are the sleeves and escutcheons, and come furnished complete with plugs, chains and an 18” polished brass or chrome sleeve for standpipe cover.

• Click Here For Accessories

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

*Scroll to the right on mobile to see entire chart
NPT
Outlet
Size(In)
Number of
2.5"(F) NHT Inlets
Clapper Type Certs. Measurements (Inches) Available Escutcheons Finish Weight
(Lbs.)
Model Fig.
2 3 4 Body
(drop)
Snoot FM
Approved
U.L.
Listed
A B C D E F Auto-Spkr Stand
pipe
Stand pipe
& Auto-Spkr
Rough Brass Polished
Brass
Polished
Chrome
4.0 9.25 8.44 0.50 18.25 23.69 23.69 s o o 30 15-2W 4"* 1
Key  s = standard   o = option
* Can order parts (sleeve or body with clapper) separately.
** Bodies of the 4-way products are rough brass or rough chrome with balance of parts polished.

ADDITIONAL INFORMATION
Each 2 ½" NHT inlet has a rated flow of 250 gpm (946 lpm).
Elkhart’s sidewalk bodies are rated for 175 psi (12.1 bar).
Supplied with plugs (#311) and chains
THREADS
Unless otherwise noted, all hose threads are NHT. See index T-13 for available optional threads.



Figure 1
free standing inlet fig 1 from Elkhart Brass

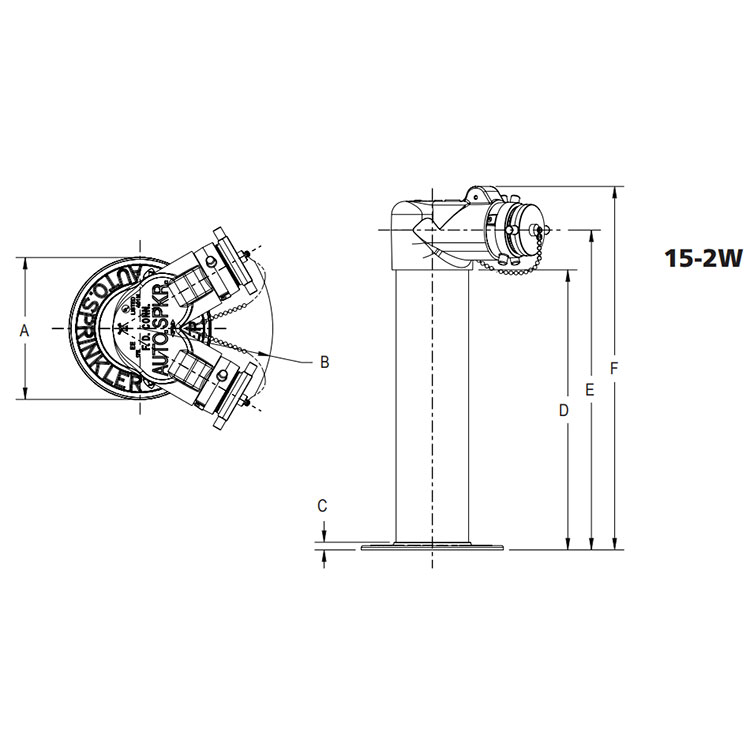

15-2W
Figure 2
Free Standing inlet Fig 2 from Elkhart Brass
15-3W
Figure 3
Free Standing Inlet Fig 3 from Elkhart Brass
15-4W

Dimensions (Inches) Model Figure
A B C D E F
9-1/4 8-7/16 1/2 18-1/4 23-11/16 23-11/16 15-2W 4"* 1
11-5/8 9-3/4 1/2 181/4 23-11/16 23-11/16 15-2W 6"* 1
11-5/8 9-1/4 1/2 18-1/4 23-9/16 23-9/16 15-3W 2
11-13/16 12-1/8 1/2 18-1/4 34-9/16 15-4W** 3
