Pressure Reducing (Pressure-Matic) Valves

Elkhart’s Pressure-Matic is a true pressure reducing valve, operated automatically by inner hydraulic controls. No diaphragms, springs or outside controls are involved with the unit, the action being completely dependent upon conditions at the nozzle or sprinkler system. Elkhart Brass offers 18 different valve pressure types/ranges for building systems. Inlet pressure up to 400 psi (27.58 bar) is controlled under all flow and no-flow conditions. The UR valve series may be used as a standard shut-off. The valves are completely tamperproof. They fit all existing cabinets where 11/2” or 2 1/2” valves are currently in use.
UR Series valves not intended for use in salt water applications.

• Click Here For Accessories

*Scroll to the right on mobile to see entire chart
When requesting a quote:
Please fill out and e-mail,
valve data sheet		 Download Valve Data Sheet Email

*Scroll to the right on mobile to see entire chart
Inlet Sizes Outlet Sizes Type Cert. Brass Finish Weight
(lbs.)		 Model Fig.
Female
(NPT)		 Female
(NPT)		 Male
(NHT)		 Angled Straight UL
Listed		 Cast Polished* Chrome*
1 ½" 2 ½" 1 ½" 2 ½" 1 ½" 2 ½"
✔   ✔       ✔   ✔ S O O 7 1/2 UR-20-1.5 1
✔       ✔   ✔   ✔ S O O 7 1/2 UR-25-1.5 2
  ✔   ✔     ✔   ✔ S O O 18 1/2 UR-20-2.5 1
  ✔       ✔ ✔   ✔ S O O 18 1/2 UR-25-2.5 2
  ✔   ✔       ✔ ✔ S O O 26 1/2 UR-20S-2.5 3

KEY  s = standard  o = option
*Partial polished
*Figures found on Dimensions tab


*Scroll to the right on mobile to see entire chart
UR20/25 Diagram
UR20/25 diagram from Elkhart Brass

Click to View outlet thread Options
Pressure-Matic valves can be used for/in:

  • Floor Control Valve
  • Standpipe System
  • Automatic Sprinkler Systems
  • UL Listed as a check valve for use in dual riser systems

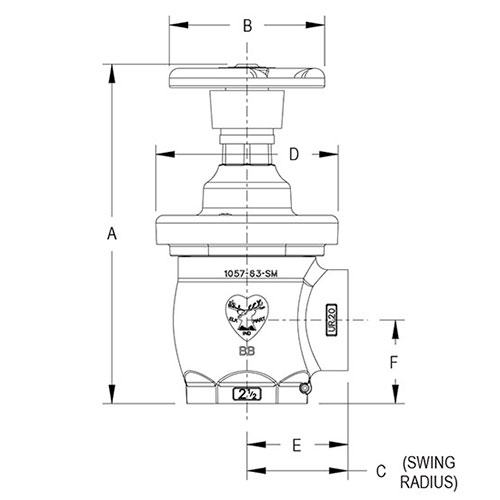

Fig. 1
UR-20 from Elkhart BrassUR-20
Fig. 2
UR-25 from Elkhart BrassUR-25
Fig. 3
UR-20S from Elkhart BrassUR-20S

*Scroll to the right on mobile to see entire chart
Dimensions (inches)
A B C D E F Fig.
Min Max
7 3/4 8 1/4 4 2 1/2 3 1/2 2 3/16 1 7/8 1
7 3/4 8 1/4 4 2 7/16 3 1/2 2 3/16 1 7/8 2
11 11 5/8 5 2 5/8 5 7/8 3 1/4 2 13/16 1
10 9/16 11 3/8 5 2 5/8 5 7/8 3 3/8 2 13/16 2
12 3/16 12 13/16 5 10 - 10 1/2 5 7/8 4 7 1/2 3
