Built-In Foam Eductors

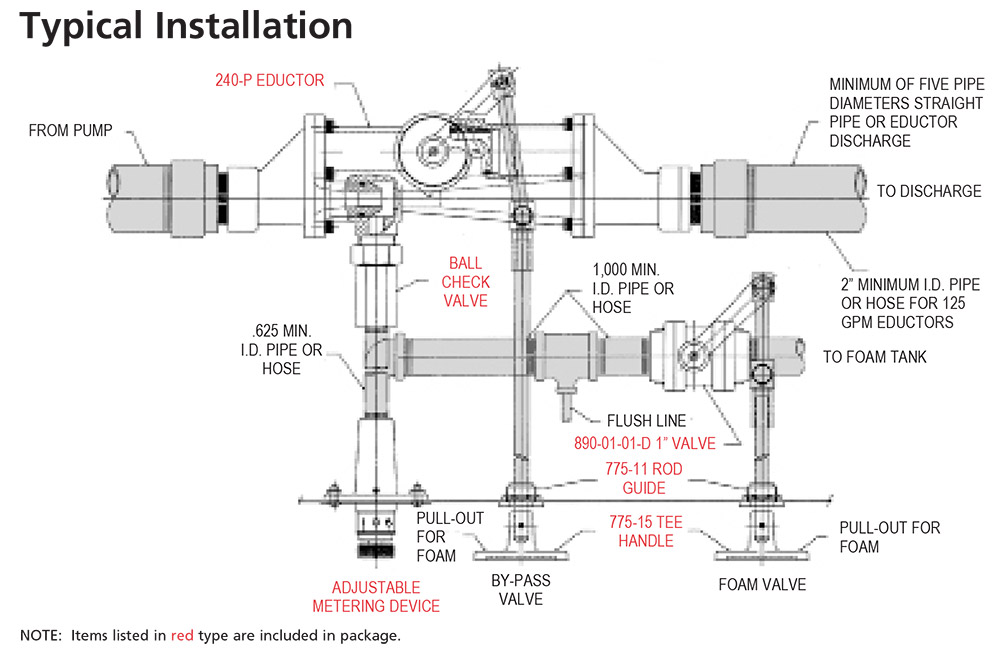

Elkhart offers built-in foam eductors for all handlines (pipe sizes of 1.5” and 2”), and the eductors are compatible with most foam concentrates. The built-in eductors come furnished with valves, fittings and accessories for installing permanently behind the panel in pump compartment.

• Click Here For Accessories

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!
Dimensions for Built-In Foam Eductors from Elkhart BrassClick to Enlarge


3DClick here to view the 240-P 60-95-125
(2" NPTF) in 3D		    3DClick here to view the 240-P 60-95-125
(2" Victaulic) in 3D


*Scroll to the right on mobile to see entire chart
NPT INLET/OUTLET* FLOW RATES GPM (LPM) LENGTH (Inches) PACKAGE WEIGHT (Lbs.) MODEL NUMBER
2.0" 60 (227) 95 (360) 125 (473)
s ✔ 17.25 32.9 240-60P
s ✔ 17.25 32.9 240-95P
s ✔ 17.25 32.9 240-125P
s = Standard   o = Optional
* Victaulic available

*Scroll to the right on mobile to see entire chart
Operating Pressures of Eductors
These eductors are designed to achieve rated flow with an inlet pressure of 200 psi.
They will operate at lower inlet pressures,
but the flow rate and percentage rate will be affected.
Checklist if eductor fails to pick up foam
Ball check stuck Clogged nozzle
Eductor handle not pulled out Elbow plumbed too close to inlet/outlet
Excessive friction loss between eductor
and discharge outlet		 Foam handle not pulled out
Foam tank not vented
Foam tank empty Kink in hose
Hose lay too long Metering valve set improperly
Metering valve clogged with dry foam Partially closed nozzle
Mismatched nozzle Too much nozzle elevation
