Water Cannon / Monitor Accessories

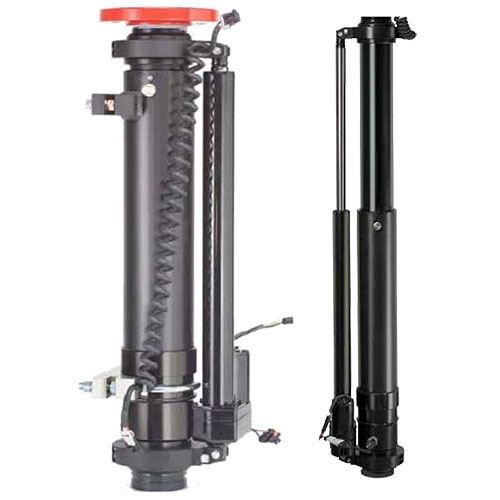

For use with the Elkhart monitors and a range of other compact monitors, the Extender is designed to provide better clearance for the monitor which allows for a wider coverage range and addresses firefighter safety concerns. It is compatible with monitor and nozzle flow ratings of 1250 gpm (max) with 100 psi nozzle pressure (max inlet pressure rating of 200 psi).
The Extender deploys in 10 seconds and extends a full 18 inches. The Extender is designed to flow in both the full up and full down positions.

Safety features of the Extender include:

• An in-cab warning light to alert the driver to incomplete retraction
• Pressure switch to limit the movement when internal pressure exceeds 10 psi

The Extender is electrically actuated through a pump panel pushbutton control pad with actuator rated for a static load of up to 2500 pounds. The chassis 12VDC electrical system provides power for the Extender. The Extender is compliant with applicable 2003 NFPA #1901 standards. All mounting and wiring materials are included in the Extender package. Available with secondary panel mounted controller.

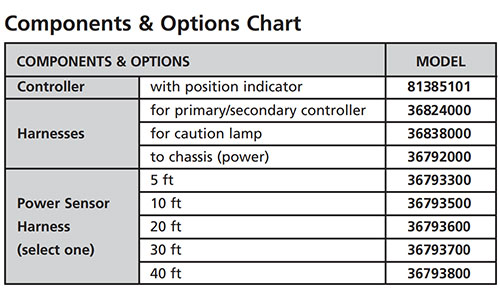

• 3" VIC / 3" MNPT
• 3" MNPT / 3" MNPT
• 3" VIC / 3" 150# Flange
• 3" MNPT / 3" 150# Flange
• 3" 150# Flange / 3" 150# Flange

ANCHOR KIT

• Portable monitor (P/N 81460001)
• Heavy duty spike
• Mallet
• Self-contained portable bag.

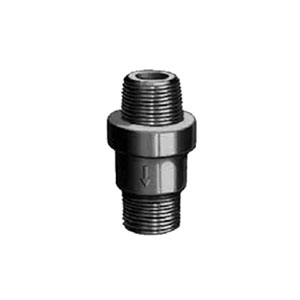

702 AUTOMATIC BALL DRIP DRAIN VALVE

• Drains at a rate of 2/3 gpm for up to 20’ head of water when pressure drops below 10 psi
• 0.75" male NPT inlet and outlet
• Mounts horizontally
• Cast brass construction
• Good for saltwater applications
• Length: 3"
• Weight: 0.778 lbs.

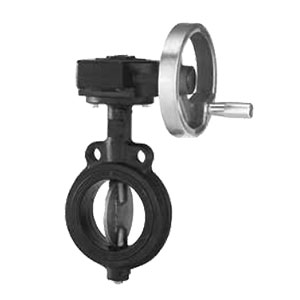

84 BUTTERFLY WAFER VALVE

• Cast iron body with #316 stainless steel upper and lower stems
• Pressure rated at 250 psi
• Seat/seal is EPDM
• Standard handle features 10 locking positions
• Optional handle is gear operated
• Size: 3" (11.3 lbs.) or 4" (14.3 lbs.) – (specify)
• Thickness: 2"
• Not recommended for salt water application

90° INTAKE BASE FOR ELEVATED MONITORS

• Used with 299-11EL & 8394-02RC monitors
• Carbon steel construction
• 6"-150# & 6"-300# flange inlet
• 4"-150#, 6"-150#, & 6"-300# flange outlet
• Full 4" waterway
• Red epoxy finish

WPO-2000 WATER POWERED MONITOR OSCILLATOR

• Used with Elkhart Brass Copperhead, Spit-Fire, and Stingray monitors
• Product flexibility allows support to most monitors with up to 2000 gpm (7570 LPM) flow rates
• 4" Inlet
• 200 PSI (14 BAR) max operating pressure
• 0-30°/sec oscillating speed range
• Arc of oscillation - 15° to 120°
• 316 stainless steel construction

MONITOR QUICK CONNECT

• Model: 7150
• Max Pressure: 500 PSI
• Inlet: 2.5" NPT Female
• Outlet: 2.5" NPT Male
• Weight: 2.8 LBS.
• Environmental Rating: NEMA 4

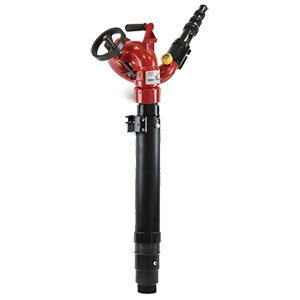

MANUAL EXTENDER

• 12" or 18" Rise
• Raises stream to prevent damage to apparatus equipment
• More ergonomic operating position
• Full 360° rotation in either position
• Cannot be accidentally unlocked
• Prevents unintended extension under pressure
• Prevents unintended collapse when extended
• Notifies personnel when Extender is NOT stowed and locked
• 3" waterway
• Capable of 1250 gpm flow
• For More information please view the Manual Extender Catalog Page

EXM CAN STOW MODULE

• Universal input voltage 10 - 30VDC
• CAN bus J1939 compatible
• Can be mounted at a different location on the truck from the monitor
• Relay switched output maintains state when power is disconnected
• Safety feature: Module reports monitor not stowed within 5 seconds if CAN communications are lost
• Sealed to NEMA 4 (IP65)
• CAN termination configurable with jumper setting
• Built in mis-wiring protection on stow signal output

#7030 JOYSTICK CONTROLLER

• This Controller can be mounted inside the cab to control all monitor functions.
• The up-down/left-right motions can be operated simultaneously with pressure sensitive speed.
• The water valve can be opened or locked into position
• The nozzle pattern can also be changed using a thumb wheel.

#7010 PANEL MOUNT CONTROLLER

• This is a sealed controller for operation of the monitor, nozzle, and water valve(optional)
• Powered with 12 or 24 Volts
• Separate push button switches are provided for:
• up & down
• Left & Right
• Fog & straight stream
• Valve Open & Closed
• Valve Preset
• Oscillation & auxiliary Functions

#7015 HANDHELD CONTROLLER WITH DOCKING STATION

• This is a sealed controller cantaining everything necessary for operation of the monitor, nozzle, and water valve(optional)
• The remote allows the operator to control the monitor from a significantly improved point of view.
• Seperate push buttons are provided for multiple oscillatiom and auxiliary functions.
• The handheld remote, through the use of frequency hopping techniques, allows multiple transmitters on a common site without interference.

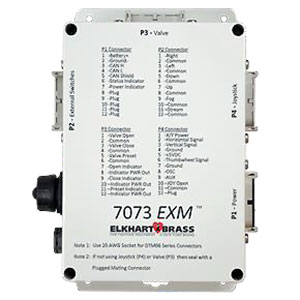

#7072/7073 OEM INTERFACE MODULE

• This feature is used in conjunction with either the Elkhart Brass, or customer supplied, joystick or OEM installed switches.
• May be configured to handle switching power or ground.
• There is also the option of mounting a joystick, or switches, in the apparatus cab to control all monitor functions, including oscillation.
• Powered with 12 or 24 Volts.

#7051 POSITION FEEDBACK DISPLAY

• All EXM monitors come with Absolute Position Feedback sensors
• This sensors provide constant feedback to the monitor's processor even when the monitor is moved via manual override.
• Information from the Absolute Position Feedback sensor is then transmitted to the Position Feedback Display.

UNIBODY VALVE WITH E3F ELECTRIC ACTUATOR

• This feature provides a convenient remote on/off and preset valve positioning control of the water supply to the monitor.
• Gives the operator control of the unit from the safety of the vehicle cab, or handheld radio controller.
• The water valve motor speed prevents water hammer, yet closes quickly to help preserve the limited on-board water supply.
• Powered with 12 or 24 Volts.

#7092 Light Kit

• 150w LED spot/flood from FRC
• Operate and position from any Scorpion EXM control device

#7062 External RF Antenna

• 10 ft extension for 7070 OEM Interface module
