Stingray®

* nozzle sold separately

Stingray® has flow-efficient 3" waterway that allow for flows up to 1250 GPM. All features designed to minimize maintenance needs, including: choice of corrosion-resistant brass or lightweight Elk-O-Lite® construction, fully enclosed gearcase with stainless steel worm, bronze balls in all swivel joints, and grease zerks for easy lubrication. Flexible installation options include numerous base options and a hydrant mounting choice. Compact in size, the Stingray® is extremely versatile, allowing the water cannon/monitor to serve a variety of real-world needs. The Stingray® IV offers built-in shut-off capabilities from a full flow 3" ball valve.

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories


*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
Max Flow GPM (LPM) 1250 GPM (4750 LPM)
Max Pressure 200 PSI (14 bar)
Inlet 4” 150# ANSI Flange
3" 150# ANSI Flange
3" NPT(F)
Outlet 2.5” NHT
Controls Single hand-wheel
Material/Finish Brass or Elk-O-Lite® with red urethane enamel
Friction Loss 27 psi at 1250 gpm
17 psi at 1000 gpm
9 psi at 750 gpm
Travel V: -60º to +90º (150º)
H: 360º (continuous)
Weight Varies (See specification chart)
Ratings and Certifications CE and FM Approved

Elkhart Brass Stingray selection guide


KEY CONFIGURATIONS (ACCESSORIES)


STINGRAY®
(less the ball valve) (2)
PRESSURE GAUGE (3) BALL VALVE (4)
Stingray (less ball valve) Pressure Gauge Ball Valve
NOTE: Ball valve cannot be ordered seperate from monitor as a stand alone part.

SM-1000HF – SELF-EDUCTING IMS-500 SELECT-O-STREAM® J-MYSTERY ® 282B STREAM SHAPER
SM 1000HF Self-Educting IMS-500 Select-O-Stream J-Mystery Stream Shaper
181- DELUGE TIP SM-1250B X-STREAM® WPO - 2000
Smooth Bore SM-1250B X-Stream WPO-2000


COMPONENTS & OPTIONS MODEL
Companion Flange Kits 3” 150# ANSI steel flange with bolts and gaskets 81315001
4” 150# ANSI steel flange with bolts and gaskets 81317001


8393IV MODEL (BALL VALVE)

Stingray BALL VALVE Fig1 Monitors from Elkhart Brass

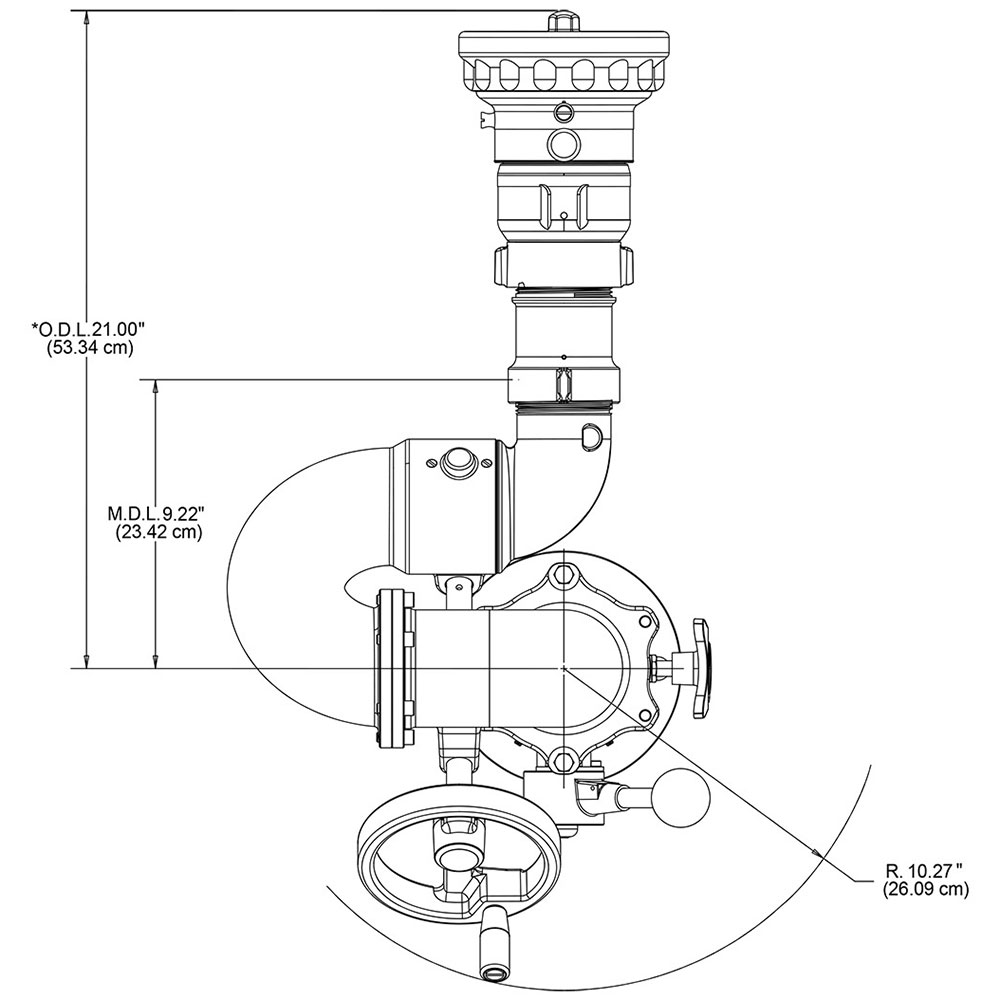

Stingray BALL VALVE Fig2 Monitors from Elkhart Brass
Stingray BALL VALVE Fig3 Monitors from Elkhart Brass



8393 MODEL

Stingray 8393 Fig1 Monitors from Elkhart Brass
Stingray 8393 Fig2 Monitors from Elkhart Brass
Stingray 8393 Fig3 Monitors from Elkhart Brass
