Stinger® 2.0 Selector Guide
*Scroll to the right on mobile to see entire chart
INLET SIZES / TYPES |
OUTLET SIZE |
ILLUSTRATION |
MODEL |
SINGLE |
DUAL |
2.5" |
3.5" NHT |
4.0" NHT |
4.5" NHT |
4.0" STORZ |
5.0" STORZ |
2.5" NHT |
o |
o |
o |
o |
o |
s |
✔ |
1 |
8297-2.0* |
o |
o |
o |
o |
o |
s |
✔ |
2 |
8397-2.0 |
|
|
|
|
6 |
7 |
|
|
Illustration |
KEY s = standard o = option
* For the Break-a-Part version, the upper and lower unit may be purchased separately.
*Scroll to the right on mobile to see entire chart
SPECIFICATIONS |
Model |
8297-2.0, 8397-2.0 |
|
Portable |
Deck Mount |
Max GPM (LPM) |
1250 GPM (4750 LPM) |
1250 GPM (4750 LPM) |
Inlets |
Sizes |
Types |
Sizes |
Types |
2 x 2.5" |
NHT (F) (1000 GPM) |
1 x 3" |
NPT (1250 GPM) |
1 x 4.5" |
NHT (F) (1250 GPM) |
1 x 3" |
150# ANSI Flange (1250 GPM) |
1 x 4" |
NHT (F) (1250 GPM) |
2 x 2.5" |
NHT (F) (1000 GPM) |
1 x 3.5" |
NHT (F) (1250 GPM) |
|
|
1 x 5.0" |
Storz (1250 GPM) |
|
|
1 x 4.0" |
Storz (1250 GPM) |
|
|
Outlet Size |
2.5” |
NHT |
2.5" |
NHT |
Controls |
Single hand-wheel |
Single hand-wheel |
Material/Finish |
Lightweight aluminum construction with red urethane enamel |
Lightweight aluminum construction with red urethane enamel |
Friction Loss |
27 psi at 1250 gpm |
25 psi at 1250 gpm |
16 psi at 1000 gpm |
16 psi at 1000 gpm |
Travel |
V +35° to +75° (40°) |
V -15° to +75° (95°) |
H L45º to R45° (90º) |
H 360° (continuous) |
Weight |
29 Lbs. (with 2 x 2.5" inlets) |
22 Lbs. |
- • Latch pin includes a visual position indicator which provides confirmation, at a glance, that the pins are in the latched position.
- • The Up/Down manual control handle automatically disengages from the up/down motor drive, eliminating the potential for finger or hand injuries.
- • A safety switch allows motor operation only when the monitor is properly installed on a base. This feature prevents possible finger and hand injuries due to entanglement in left/right pinion gear.
- • A lightweight, compact anchor strap with storage pouch is permanently attached to the portable base.
- • An optional deck mount base is available for use with top mount control panels. The optional base has a ring gear that allows only 270º left/right travel, thus preventing the stream from being directed to the operator’s position.
STORAGE BRACKET (3) |
ANSI FLANGE TOP MOUNT (4) |
NPT TOP MOUNT (5) |
LDH INLET BASE (6) |
|
|
|
|

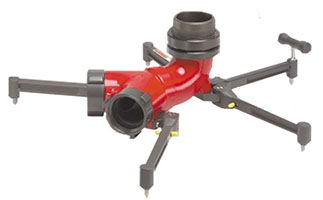

SIAMESE INLET BASE (7) |
DECK MOUNT ADAPTER (8) |
THE PIPE™ 2.0 (9) |
PROTECTIVE COVER (10) |
|
|
|
|
SM-1000HF –
SELF-EDUCTING |
SM-1250 -
X-STREAM® |
282-A -
STREAM SHAPER |
ST-194 -
QUAD STACKED TIP |
|
|
|
|

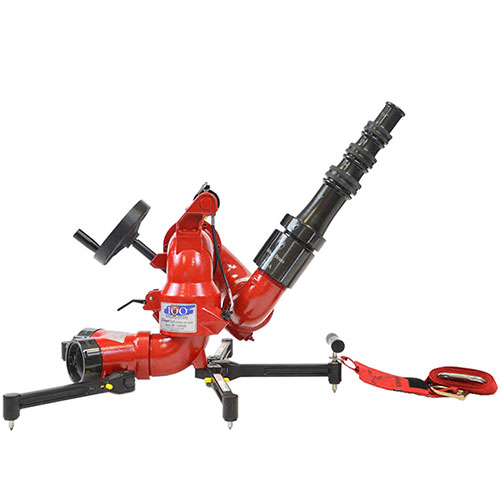

8297-2.0 Break-a-Part version

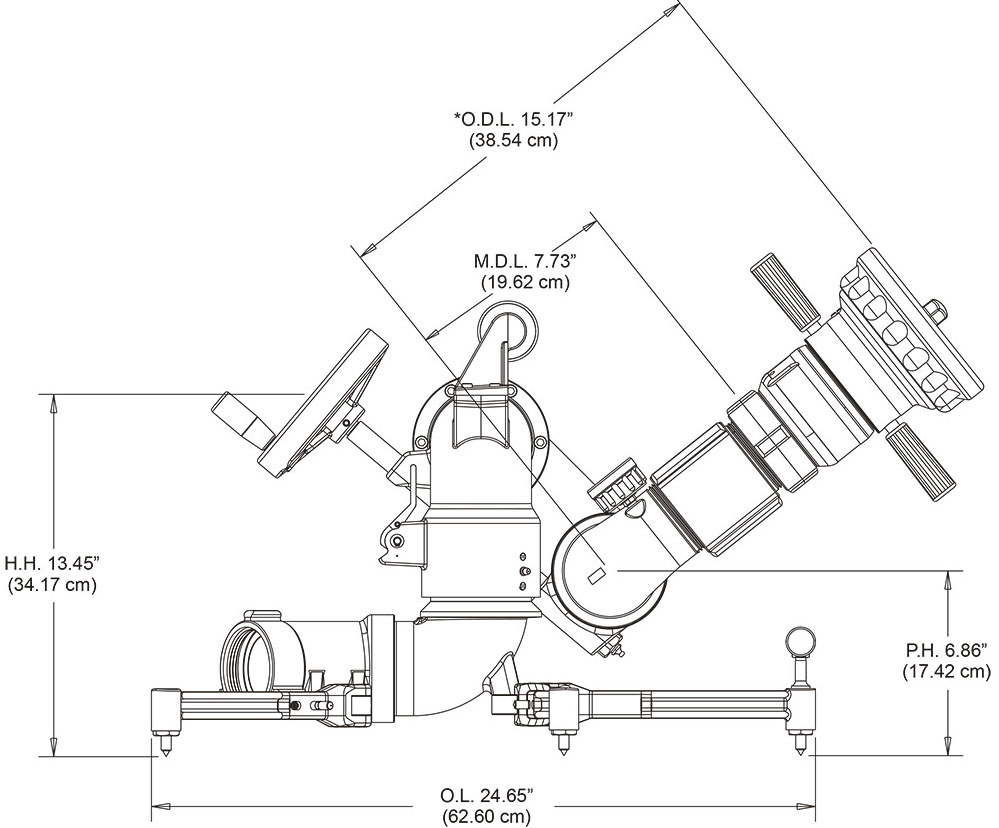

8397-2.0
