Scorpion®

* Includes stream shaper

With its lightweight Elk-O-Lite® construction, the Scorpion® is the perfect Water Cannons/Monitor for aerial applications. Scorpion® is efficient at high flows due to a 4” fully-vaned waterway. Elkhart offers a choice of manual controls. The dual hand-wheel style delivers a full 360° horizontal rotation, and 10 vertical and 39 horizontal adjustable stop positions. The tiller style (“Big Stick®”), allows vertical and horizontal travel to be conveniently controlled with one handle. Scorpion® requires little maintenance on the fully enclosed gearcase, steel worm gears, and stainless steel balls in all swivel joints with grease fittings.

• Click Here For Water Cannon/Monitor Selection Guide
• Click Here For Water Cannon/Monitor Accessories
• Click Here For Accessories


*Scroll to the right on mobile to see entire chart
SPECIFICATIONS
Model 8294-02, 8294-131
Max Flow GPM (LPM) 2000 GPM (7550 LPM)
Max Pressure 200 PSI (14 bar)
Inlet 4” 150# ANSI Flange Inlet
Outlet 3.5” NHT
Controls Dual hand-wheel
“Big Stick®”
Material/Finish Elk-O-Lite® with red urethane enamel
Friction Loss 39 psi at 2000 gpm
15 psi at 1250 gpm
Travel V: -45º to +90º (135º), -50º to +75º (125º)
H: 360º
Weight 38 Lbs.
Ratings and Certifications CE


*Scroll to the right on mobile to see entire chart Scorpion® Selector Guide
INLET SIZE/ TYPE OUTLET SIZE CONTROLS CERTIFICATION MODEL
4” 150# ANSI Flange 3.5” NHT Dual Hand-wheel Big Stick CE
s   8294-02
s   8294-131
    1 2   Illustration
s = Standard
o = Optional

KEY CONFIGURATIONS
(ACCESSORIES)

(Tiller) "Big Stick®" Style (2)
Scorpion tiller style


Recommended Products


SM-2000HF –
SELF-EDUCTING
SM-1250 -
X-STREAM
CSW-L –
SELECT-O-FLOW®
284-A
STREAM SHAPER
181-3
DELUGE TIP
84
BUTTERFLY
WAFER VALVE
SM-2000HF Self-Educting SM-1250 X-Stream CSW-L Select-O-Flow Stream Shaper 181-3 Deluge Tip 84 Butterfly Valve


COMPONENTS & OPTIONS
MODEL
Companion Flange Kits 4” 150# ANSI steel flange with bolts and gaskets 81317001


8294-02 Dual Hand-wheel

Scorpion fig 1 Monitors from Elkhart Brass
Scorpion Fig 2 Monitors from Elkhart Brass
Scorpion fig 3 from Elkhart Brass


8294-131 Big Stick® (Tiller)

Scorpion Teller fig 1 Monitors from Elkhart Brass

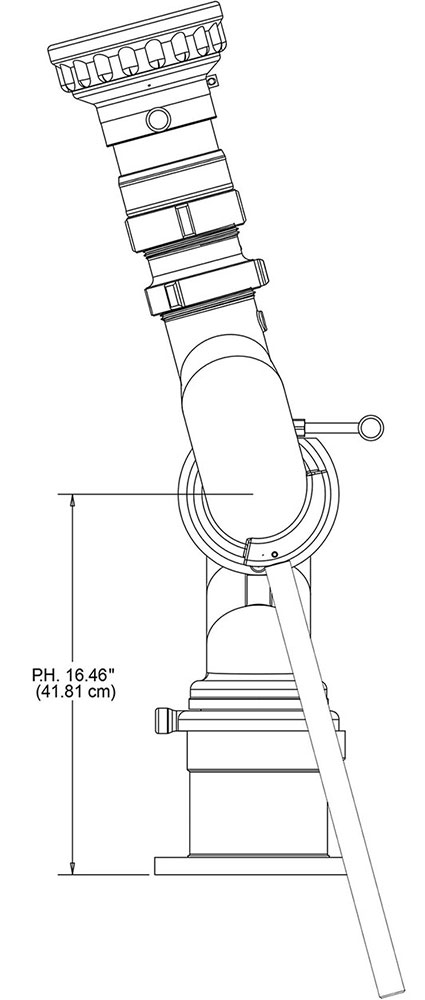

Scorpion Teller Fig 2 Monitors from Elkhart Brass
Scorpion Teller fig 3 from Elkhart Brass
