Roof Manifolds & Connections

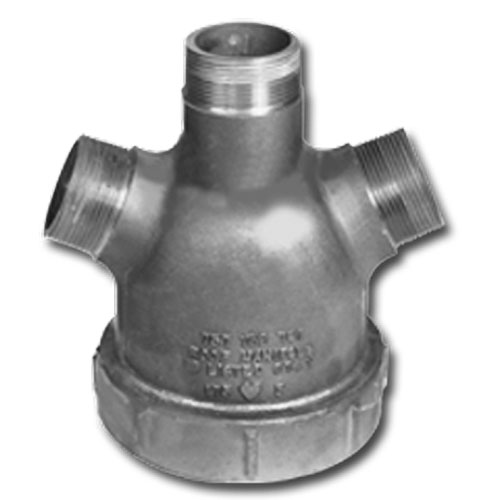

Elkhart provides several choices in roof manifolds and connections. Roof manifolds provide water control (on mounted building or adjacent buildings) when used with angle hose valves, while the roof connections can be used to disperse water to adjacent buildings. All options offer cast brass construction and 2½” outlets rated at 250 GPM (946 LPM) per outlet.

• Click Here For Accessories

Call us TODAY at 727-835-0657 or
Toll Free at 800-761-4298

Get A Free Quote!

Inlet Size Outlet Cert Measurements (Inches) Weight (lbs.) Model Figure
Number Style U.L. Listed
2 3 Male Female A B C D E F
4 ✔   ✔   ✔ 5 5/8 3 11/16 4 3/8 2 3/8 5 1/8 4 15/16 8 168 1
✔     ✔ ✔ 5 7 1/2 11 6 7/16 26 1/4 158 3
✔     ✔ ✔ 5 6 5/8 12 3/8 5 7/8 16 1/4 159 4
✔   ✔   ✔ 5 1/16 5 7/16 7 7/8 5 5/8 9 3/4 751 6
  ✔ ✔   ✔ 4 1/5 5 1/4 4 13/16 2 1/2 4 3/8 10 1/4 168 2
  ✔   ✔ ✔ 5 6 5/8 19 5 7/8 27 1/4 159 4
6 ✔   ✔   ✔ 5 5/8 4 11/16 4 15/16 2 5/8 7 1/4 5 11/16 14 1/4 168 1
✔     ✔   7 1/2 7 1/2 11 1/2 8 26 1/4 158 3
✔     ✔   7 1/4 6 5/8 12 3/8 7 15/16 3 11/4 159 4
✔   ✔   ✔ 7 1/2 9 1/2 10 11/16 8 20 1/4 755 7
  ✔ ✔   ✔ 5 1/4 7 1/4 4 15/16 2 11/16 5 3/8 15 1/4 168 2
  ✔   ✔ ✔ 7 3/8 6 5/8 17 1/4 6 1/8 24 3/8 158 3
  ✔   ✔ ✔ 7 1/4 6 5/8 19 7 15/16 42 3/4 159 4
  ✔ ✔   ✔ 7 1/2 4 3/4 10 11/16 10 1/2 20 3/8 761 5
Key  s = standard   o = option


ADDITIONAL INFORMATION
When ordering, specify model number, inlet size and number of outlets.
Each outlet has a rated flow of 250 gpm (946 lpm).
Roof manifolds can be used in alternate applications and/or to test fire pump systems.
THREADS
Unless otherwise noted, all hose threads are NHT. See index T-13 for available optional threads.



Figure 1
2-way roof manifolds and connections from Elkhart Brass
168
Figure 2
3-way roof manifolds and connections from Elkhart Brass
168
Figure 3
158 roof manifolds and connections from Elkhart Brass
158
Figure 4
159 roof manifolds and connections from Elkhart Brass
159
Figure 5
761 roof manifolds and connection from Elkhart Brass
761
Figure 6
751 roof manifolds and connection from Elkhart Brass
751
Figure 7
755 roof manifolds and connection from Elkhart Brass
755
